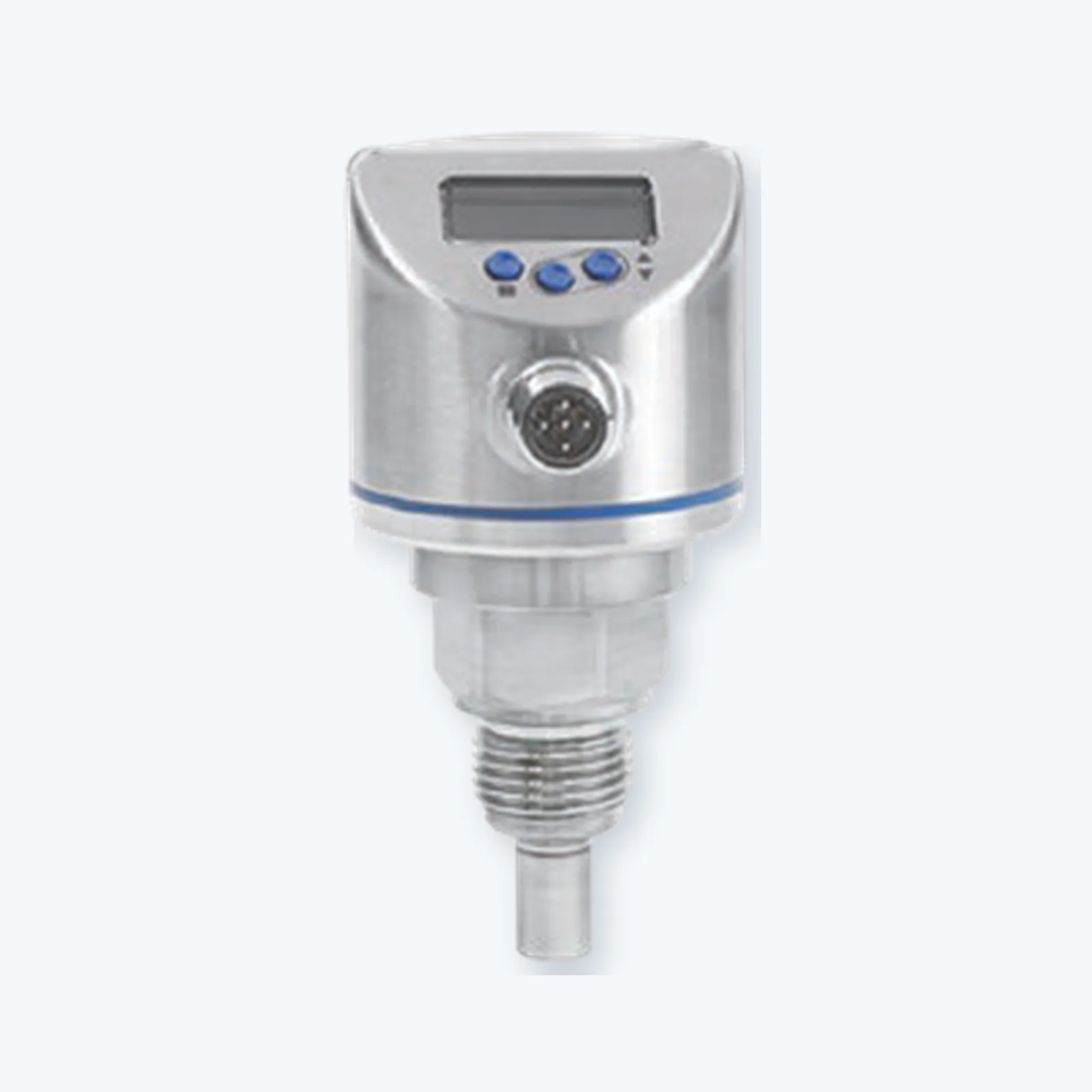

TYCK FS210 Thermal Flow and Temperature Sensor

Calorimetric flow monitoring with optional integrated temperature output

TYCK FS210 Thermal Flow and Temperature Sensor
Thermal Flow Sensors

TYCK FS210 Thermal Flow and Temperature Sensor

Calorimetric flow monitoring with optional integrated temperature output

SKU

Model Selection

4 configurations

Select a SKU to review its name and image. Technical values are released only after engineering verifies the controlled source.

Selected Model

FS210 Flow and Temperature Sensor with DisplayFS210-FT-D
Specifications

Held for engineering verification. Submit the application conditions to receive the controlled values.

Consult Selected SKU

Product Overview

Product Description

The TYCK FS210 uses a calorimetric sensing principle to monitor flow velocity and, on selected versions, medium temperature. It is intended for configured water, glycol, air and compatible oil duties.

This is a flow sensor, not a universal mass flowmeter. Medium properties, velocity, pressure, temperature and output must be reviewed before selection.

PRODUCT DATA

Technical Facts

Use these comparable fields to shortlist the product. The selected SKU, controlled datasheet and TYCK quotation confirm the ordered range, accuracy, materials, connection and output.

Engineering verification in progress

Numeric performance and configuration values are held in the internal product record until TYCK engineering verifies the source and approves this product. Send the application conditions to receive a controlled selection and quotation.

SKU Matrix

Available Models

4 configurations. Each SKU has an independent parameter set in the CMS; values are published only after technical verification.

SKU CodeModelSpecificationsUnit
FS210-FT-DFS210 Flow and Temperature Sensor with DisplayHeld for engineering verification—
FS210-FT-CFS210 Compact Flow and Temperature SensorHeld for engineering verification—
FS210-F-DFS210 Flow Sensor with DisplayHeld for engineering verification—
FS210-F-CFS210 Compact Flow SensorHeld for engineering verification—

APPLICATION REVIEW

Selection inputs and installation checks

These checklists identify the information still required; they do not add unverified performance claims to this product.

Selection focusLiquid or gas identity and thermal propertiesMinimum and maximum velocityPipe, insertion and process connectionSwitching, analog or IO-Link interface

Selection inputs to send

  1. Flow taskState liquid, gas or steam service, pipe size and the expected minimum, normal and maximum flow.
  2. Medium propertiesProvide composition and relevant conductivity, density, viscosity, solids, bubbles or phase-change information.
  3. Operating envelopeGive normal and limit pressure and temperature together with expected process variation.
  4. Piping and installationProvide pipe material, lining or connection, orientation, straight runs, nearby valves, bends, pumps and vibration.
  5. Electrical and project scopeConfirm power, output, communication, area classification, required documents, quantity and destination.

Installation review before order

  • Confirm pipe size, schedule or internal diameter, connection, orientation and whether the pipe remains full where required.
  • Record upstream and downstream disturbances, available straight runs, valves, pumps, vibration and support.
  • Verify wetted materials, liner or sensor construction against the actual medium and cleaning method.
  • Review enclosure location, cable route, power, grounding and output wiring.
  • Use the selected model installation manual and approved piping drawing before installation or commissioning.

Confirmation boundary: final model, materials, ratings, connection and supply scope must come from the selected SKU, controlled documentation and formal quotation.

Send This Selection Brief

RELATED PATHS

Solutions and technical resources

Use these internal guides to describe the application before requesting a specific configuration.

FAQ

Frequently Asked Questions

These answers support initial selection. Confirm final performance against the selected SKU and technical documents.

Is FS210 a mass flowmeter?

No. The manual describes a thermal flow and temperature sensor; any mass-flow requirement needs separate engineering review.

Can one version output flow and temperature?

Yes, selected configurations provide both variables; confirm the required outputs and receiving system.
