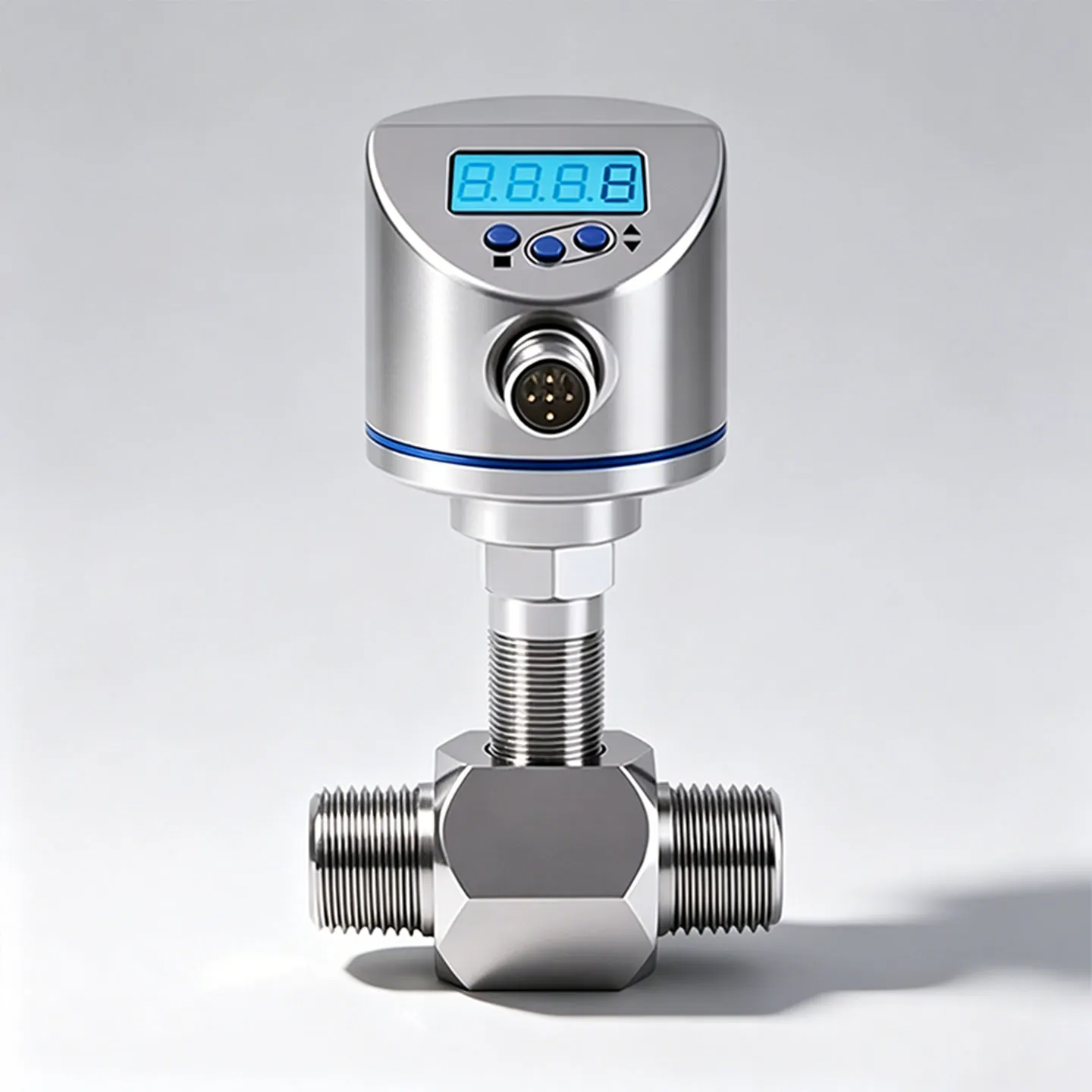

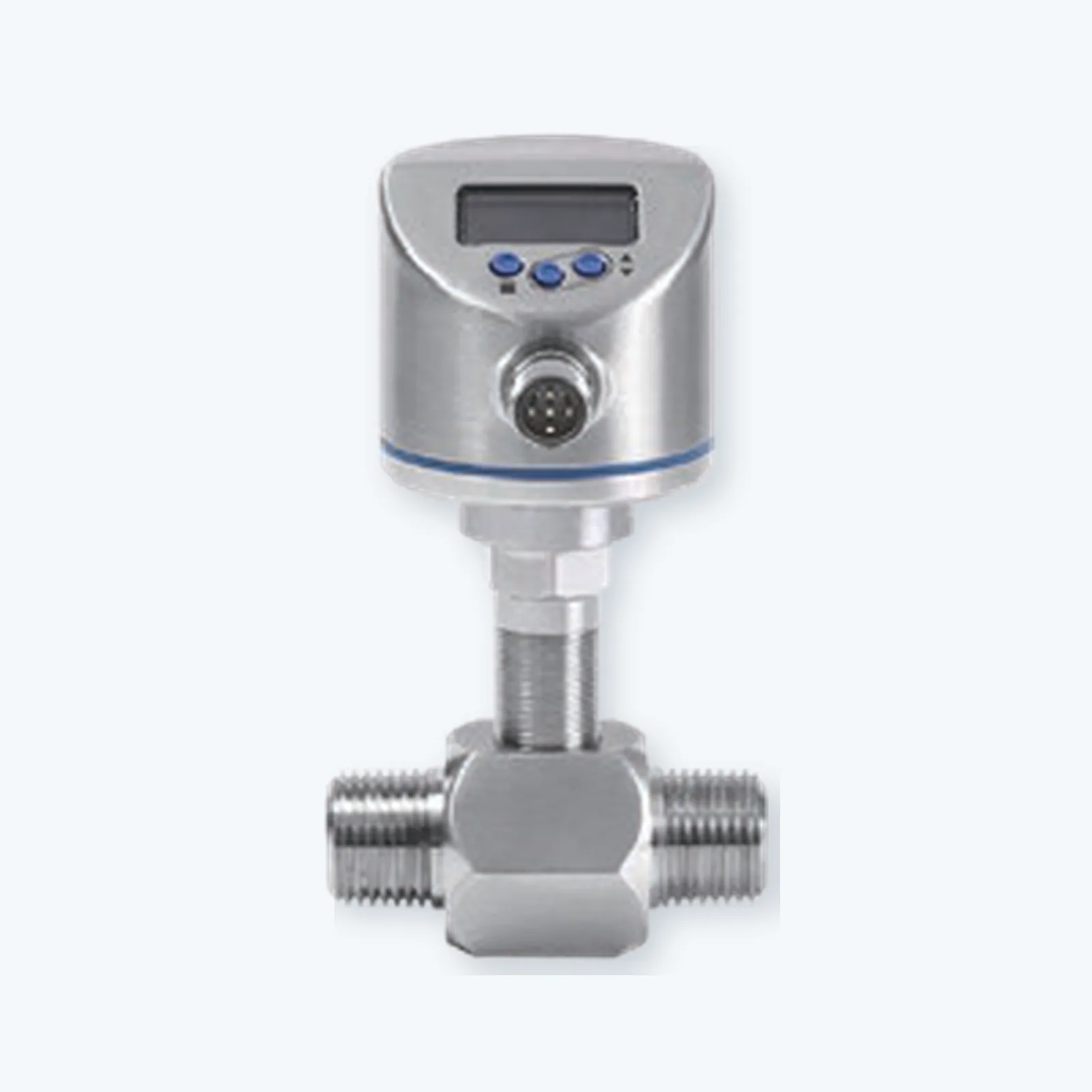

TYCK FT210 Liquid Turbine Flowmeter

Selection inputs to send

1. Flow taskState liquid, gas or steam service, pipe size and the expected minimum, normal and maximum flow.
2. Medium propertiesProvide composition and relevant conductivity, density, viscosity, solids, bubbles or phase-change information.
3. Operating envelopeGive normal and limit pressure and temperature together with expected process variation.
4. Piping and installationProvide pipe material, lining or connection, orientation, straight runs, nearby valves, bends, pumps and vibration.
5. Electrical and project scopeConfirm power, output, communication, area classification, required documents, quantity and destination.

Installation review before order

• Confirm pipe size, schedule or internal diameter, connection, orientation and whether the pipe remains full where required.
• Record upstream and downstream disturbances, available straight runs, valves, pumps, vibration and support.
• Verify wetted materials, liner or sensor construction against the actual medium and cleaning method.
• Review enclosure location, cable route, power, grounding and output wiring.
• Use the selected model installation manual and approved piping drawing before installation or commissioning.
